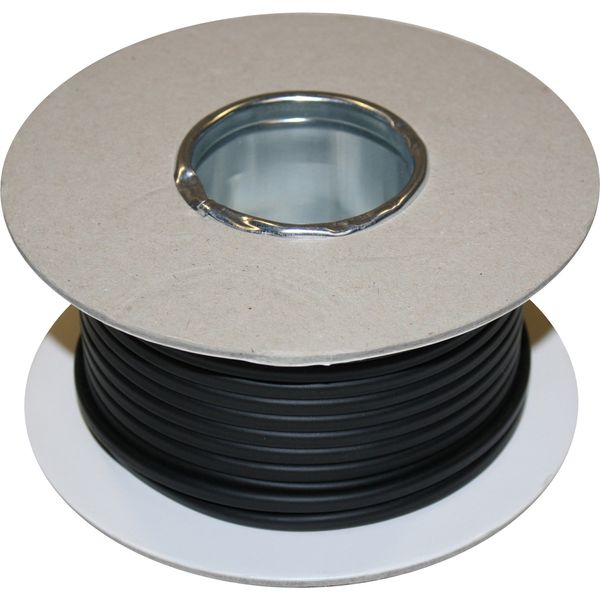

AMC 2 Core TW Cable 32/0.20 1.0mm2 30m Black (Flat)
Product code:
8-00833-BK
Manufacturer SKU:
TW02/01BRB.30
Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC. Plain copper conductors, PVC sheathed 70ºC.
Description
Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC. Plain copper conductors, PVC sheathed 70ºC.| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 2 Core |
| Unit of Sale | 30 Metres |
| Cable Inner Colours | Black & Red |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 2 x 32/0.20 mm |
| Cable Conductor Cross Section Description | 1.0mm² |
| Replaces | 712213-A & 734213-A |
| Resistance Per Metre at 20degC | 0.0185 ohms |
| Shape Description | Flat |
| Brand | AMC |
| Colour | Black |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps Description | Nominal Current Rating: 16.5A |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter Description | 3mm x 5mm |
| Country of Origin | United Kingdom |
