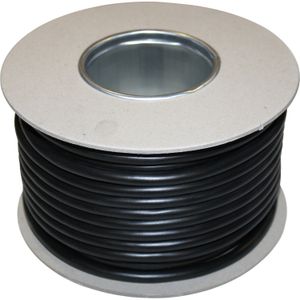

AMC 3 Core Cable 28/0.30 2.0mm2 30m Black
Product code:
8-00860-BK
Manufacturer SKU:
TW03/02.30
Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC. Plain copper conductors, PVC sheathed 70ºC.
Description
Cores manufactured to ISO 6722-1:2011 (Class B) 105ºC. Plain copper conductors, PVC sheathed 70ºC.| Maximum Load Description | 12V = 300 Watts, 24V = 600 Watts |
| Style | Thin Wall Cable |
| Cable Conductor | Plain Copper |
| Cable Cores | 3 Core |
| Unit of Sale | 30 Metres |
| Cable Inner Colours | Red, Black & Green |
| Cable Insulation | Hard Grade PVC |
| Conductor Specifications | 3 x 28/0.30 mm |
| Cable Conductor Cross Section Description | 2.0mm² |
| Replaces | 712323-A & 734333-A |
| Resistance Per Metre at 20degC | 0.00942 ohms |
| Shape Description | Round |
| Brand | AMC |
| Colour | Black |
| Voltage Description | Max. 60V (suitable for 12V DC & 24V DC systems, excluding Hi Tension circuits) |
| Amps Description | Nominal Current Rating: 25A |
| Approvals | Cores manufactured to ISO 6722-1:2011 (Class B), Plain copper conductors to BS EN 60228:2005 |
| Temperature Range | -40°C to +105°C (with excursions to 120°C max) |
| Diameter Description | Max Outside Diameter: 7.3mm |
| Country of Origin | United Kingdom |
