Arco Marine Starter Motor 30433 for OMC, Mercury & Volvo (12V)

Arco Marine Starter Motor 30433 for OMC, Mercury & Volvo (12V)

Name: Arco Marine Starter Motor 30433 for OMC, Mercury & Volvo (12V)
SKU: AR-30433

Product code: AR-30433
Manufacturer SKU: 30433

Description

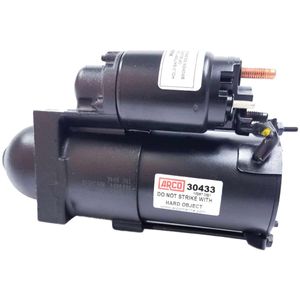

Arco 30433 Premium Replacement Inboard Starter motor. This gear reduction marine starter is suitable for Mercruiser, Volvo Penta, OMC and Marine Power engines, all GM engines with 14" flywheel using a staggered bolt pattern, as well as for late model 3.0 litre with 14" flywheel using tail bracket. It can also be used in place of the 10MZT style starter with two long-bolt staggered pattern (mounting bolt kit MBK450 is required if replacing 10MT). 12 Volt starter motor with clockwise rotation.

The Arco starter motor replaces OEM part numbers:

- Volvo Penta 3587625, 3857747, 3860566, 3860764, 3885317, 3850525-1, 3853982-1, 3854751-9, 3855177-6 and 3856004-1

- BRP / OMC 984456, 986505, 3850525, 3853982, 3854751, 3855177, 3857747 and 3860566

- Delco 9000735, 9000762, 9000768, 9000789, 9000819, 9000821, 9000839, 9000840, 9000849, 9000885, 9000940 and 9000884 (Hi Performance)

- Marine Power 0174-000

- Mercury 50-12121A2, 50-12177A2, 50-806964A2, 50-806964A3, 50-806964A4, 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, 50-8M8021116, 50-807904A1, 50-863007A1 and 50-99418A2

- Sierra 18-6275

- Pleasurecraft RA122015

- ProTorque PH140-0017-D and PH130-0067

- MPParts SDR0105 and SAB0081

All armatures are precision tested to withstand 50 times the operation voltage (12V). All motors performance tested at 5 different load levels. All motors must meet or exceed OEM performance before being boxed.

Specifications

Suitable For	Mercury\|Johnson Evinrude\|Volvo
Replaces	Volvo Penta 3587625, 3857747, 3860566, 3860764, 3885317, 3850525-1, 3853982-1, 3854751-9, 3855177-6, 3856004-1, OMC 984456, 986505, 3850525, 3853982, 3854751, 3855177, 3857747, 3860566, Delco 9000735, 9000762, 9000768, 9000789, 9000819, 9000821, 9000839, 9000840, 9000849, 9000885, 9000940, 9000884, Marine Power 0174-000, Mercury 50-12121A2, 50-12177A2, 50-806964A2, 50-806964A3, 50-806964A4, 50-812428A3, 50-812604A2, 50-822330A2, 50-864340A2, 50-8M8021116, 50-807904A1, 50-863007A1, 50-99418A2, Sierra 18-6275, Pleasurecraft RA122015, ProTorque PH140-0017-D, PH130-0067, MPParts SDR0105 & SAB0081
Brand	Arco Marine
Voltage Description	12V DC
Country of Origin	United States
