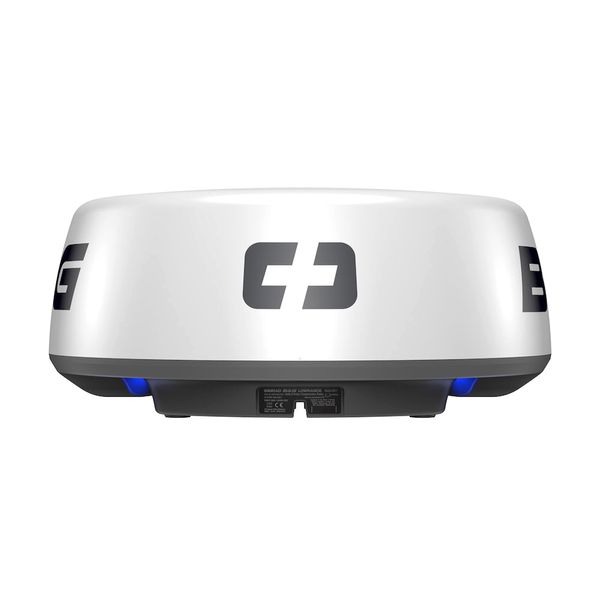

B&G HALO20+ Radar
Product code:
000-14539-001
Manufacturer SKU:
000-14539-001
The HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection, ideal for a wide range of mid-sized to large sailboats.Two distance ranges can be monitored... Read more
Description
The HALO20+ comes in a compact dome antenna and delivers high-quality short, mid and long-range detection, ideal for a wide range of mid-sized to large sailboats.
Two distance ranges can be monitored at once in Dual Range mode which enables the user to keep an eye on far away weather cells while watching for collision hazards up close.
HALO20+ radar’s pulse compression technology means no compromises in detection at either selected range, while beam sharpening provides enhanced separation between small or distant targets.
The radar unit delivers a full 360 degree sweep every second, thanks to its 60 RPM rotation at ranges up to 1.5 nautical miles. These ultra-fast updates give an almost real-time view at close range, offering the ultimate view for collision avoidance of fast-moving targets.
VelocityTrack™ technology provides instant visual feedback on whether targets are coming towards the vessel or moving away. Simple colour coding highlights potential hazards, improving situational awareness and further reducing risk of collision. The radar automatically checks every target in range so there’s no need to manually select individual targets, and no limit to the number of targets on screen at one time.
HALO20+ wakes instantly from its low-power standby mode, delivering high-speed radar coverage exactly when and where needed. Start-up is a matter of seconds, even if the device is completely powered down.
Whether navigating through crowded waterways or contending with poor visibility, HALO20+ Radar immediately cuts through the clutter to offer a clear and current picture of surroundings.
Harbour, Offshore, Weather, Bird, and custom modes tune HALO20+ Radar’s advanced signal processing to help ensure that targets can be seen vividly - even in the toughest environmental conditions.
Key Features
36nm range from a compact 20-inch dome
Advanced pulse compression technology with beam sharpening
Simultaneous Dual Range operation sees both near and far
Ultra-fast 60 RPM operation at ranges up to 1.5nm
VelocityTrack™ Doppler technology for collision avoidance
Easy operation with harbour, offshore, weather, and bird modes
MARPA target tracking (up to 10 targets, 20 in dual range)
Ready instantly from standby
Low power cosumption
| Brand | B&G |
| Voltage Description | 10.5V - 31.2V DC (12/24V systems) |
| Fuse | 5A (recommended) |
| Approvals | FCC, Part 47 CFR 80 and 90: RED, Article 3 of Directive 99/5/EC: CE: EN, EN302-248 V2.1.1: Industry Canada, RSS238: RCM (C-Tick): IEC60945 Sec 9.2,9.3, 10.3-10.9, 11.2: IEC60950 Electrical Safety |
| Consumption | Max.: 29W / Typical: 20W |
| Temperature Range | Operating: -25 to + 55°C (-13 to +130°F) |
| Warranty | 2 Years |
