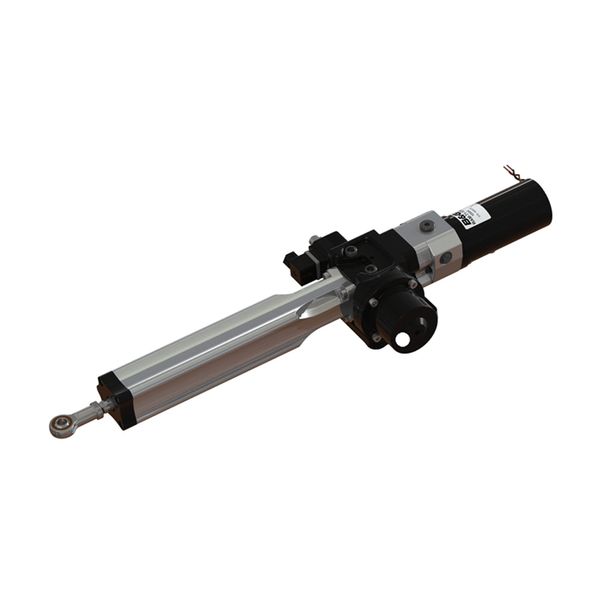

B&G Hydraulic Autopilot Ram T1 12V
Product code:
RAM-T1-12V
Manufacturer SKU:
RAM-T1-12V
A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure.- Model: T1 12V- Max boat size: 12,000kg-... Read more
Description
A high power, efficient 12V hydraulic autopilot drive unit that enables the Power Steer Mode on a Pilot to be used in case of manual steering failure.
- Model: T1 12V
- Max boat size: 12,000kg
- Stroke: 250mm
- Hard over time: 13 seconds
- Tiller arm: 213mm
- Thrust: 700 kg/f
- Rudder torque: 149 kg/m
- Computer: NAC-3/H5000
- Typical Amp-hour 60kg at 25% duty (12V): 2.0
- Typical current intermittent 650kg (12V): 19.0
- Ingress protection: IP67
- EMC protection: BS EN 60945:2002 (DC)
- Ignition protection: BS EN 28846:1993
- Declaration of Conformity: EMC Directive 2014/30/EU
- Ambient operating temperature: -15 to + 55 deg C
- Max operating thrust: 700kg (Intermittent)
- Relief valve setting: 62 bar (730kg)
- Orientation - Red lead to positive - Extends
- Orientation - Black lead to positive - Retracts
- Clutch coil: 12 watt
- Clutch connection: DIN 43650 (6-8mm cable)
- Fluid: ISO VG10 to VG40 hydraulic mineral fluid to ISO 6743-4 HV
The following commercial fluids are suitable: Fuchs Renolin B 15 HV1, Seastar HA5430
Key Features
Fully integrated hydraulic system - no external hoses, reservoirs etc
Maximum power with minimum consumption
| Brand | B&G |
| Application | Boats up to 12000kg |
| Model | T1 12V |
| Voltage Description | 12V DC |
| Weight | 8kg |
