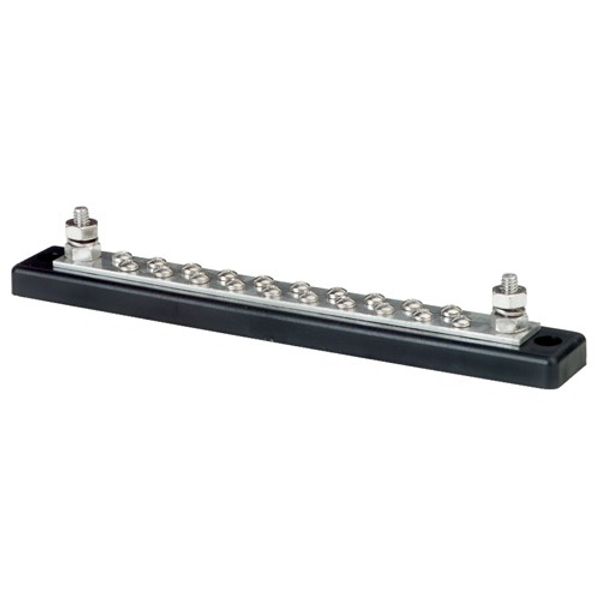

Blue Sea Common Busbar 20 Gang (150A)
Product code:
8-22302
Manufacturer SKU:
2302-BSS
150 AMP COMMON BUSBARSThe industry standard busbar for positive distribution and the collection of negative or AC ground circuitsScrew Terminal Torque: 15 in-lb (1.69 Nm)Stud Torque:... Read more
Description
150 AMP COMMON BUSBARS
The industry standard busbar for positive distribution and the collection of negative or AC ground circuits
Screw Terminal Torque: 15 in-lb (1.69 Nm)
Stud Torque: 60 in-lb (6.78 Nm)
8-22302 Spare Cover
| Material | Bus: Tin-Plated Copper (CDA 110 / UNS 11000), Base: Glass Reinforced Thermoplastics (UL 94-V0 Rated) |
| Connections Description | Terminals: 1/4" Stud, #8-32 Screw |
| Brand | Blue Sea Systems |
| Colour | Black |
| Voltage Description | 300V AC / 48V DC maximum |
| Amps Description | Continuous: 130A AC & 150A DC |
| Approvals | CE |
| Height Description | 36.43mm (1.4") minimum |
| Width | 31.75mm (1-1/4") |
| Length | 234.95mm (9-1/4") |
| Dimensions | Distance Between Mounting Hole Centres: 215.9mm (8-1/2") |
