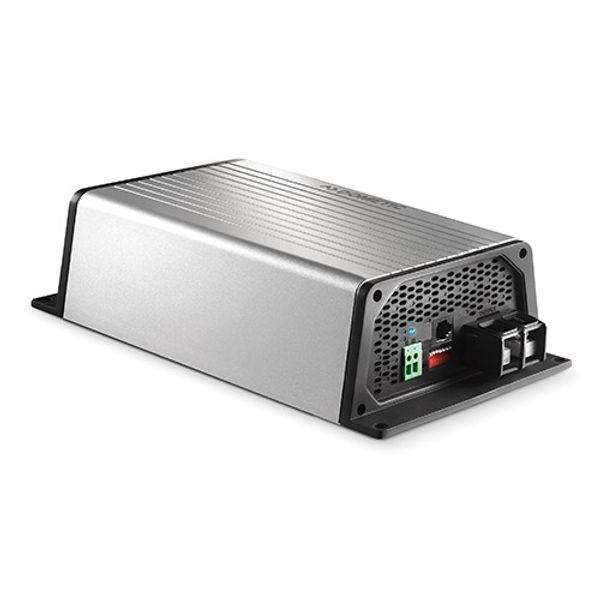

Dometic DC-DC Converter DCC 24V-12V 40A

Name: Dometic DC-DC Converter DCC 24V-12V 40A
SKU: 8-70133

Product code: 8-70133
Manufacturer SKU: 9600003751

These DC charging converters charge a second battery from a DC supply and can be used on modern Euro 6 vehicles fitted with smart alternators.Features IUOU charging technology for efficient powerful... Read more

Description

These DC charging converters charge a second battery from a DC supply and can be used on modern Euro 6 vehicles fitted with smart alternators.

Features IUOU charging technology for efficient powerful DC-DC charging

Adjustable to all common battery types e.g. wet lead acid, gel lead acid and AGM*

Temperature compensated charging with optional temperature sensor (Part No. 8-70229)

Easy configuration using external dip switches

Reliable solution for vehicles manufactured to Euro 6 emissions standard

Specifications

Brand	Dometic
Voltage Description	24V - 12V DC

Ask a question

Dometic DC-DC Converter DCC 24V-12V 40A

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Technical Specification

< table PUBLIC "table" "ComplexTable.dtd">

Part No.	8-70130	8-70131	8-70132	8-70133	8-70134
Model:	DCC 1224-10	DCC 1224-20	DCC 2412-20	DCC 2412-40	DCC 2424-10
Input voltage:	12V DC	12V DC	24V DC	24V DC	24V DC
Input voltage range:	8 to 16 volts DC	8 to 16 volts DC	16 to 32 volts DC	16 to 32 volts DC	16 to 32 volts DC
Charging current:	10A	20A	20A	40A	10A
Charging voltage:	26.4V - 29.4V	26.4V - 29.4V	13.2V - 14.7V	13.2V - 14.7V	26.4V - 29.4V
Output:	250W	500W	250W	500W	250W
Efficiency up to:	90%	90%	90%	90%	90%
Idle power consumption:	<0.4A	<0.4A	<0.4A	<0.4A	<0.4A
Ambient temp for operation:	-20ºC to +50ºC	-20ºC to +50ºC	-20ºC to +50ºC	-20ºC to +50ºC	-20ºC to +50ºC
Weight:	1.55kg	1.85kg	1.55kg	1.85kg	1.55kg
Dimensions (WxHxD):	153 x 73 x 220mm	153 x 73 x 220mm	153 x 73 x 220mm	153 x 73 x 260mm	153 x 73 x 220mm
