Dometic Series 90 VD-21 Flat Evaporator Plate
Product code:
6-60180
Manufacturer SKU:
9105306615
Plate Evaporator VD-21Standard plate evaporator with large surface. Self-sealing valve couplings Flexible connection pipe approx. 2m Continuously variable thermostat (for... Read more
Description

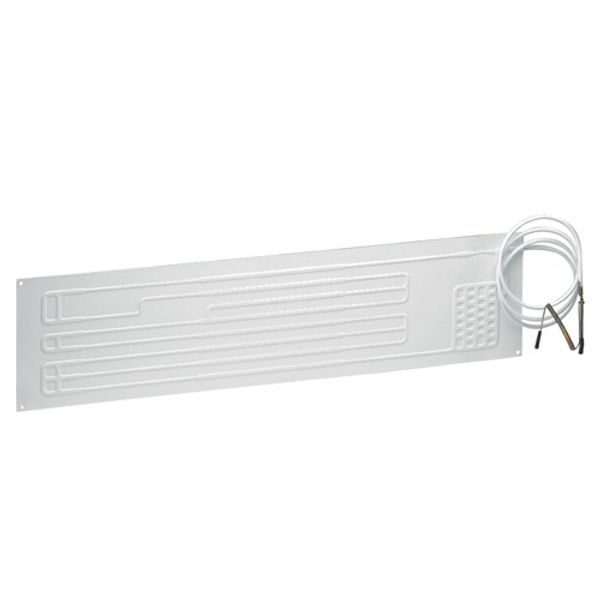

Plate Evaporator VD-21
Standard plate evaporator with large surface.
Self-sealing valve couplings
Flexible connection pipe approx. 2m
Continuously variable thermostat (for external installation, with blue turning knob and LED indicator in white plastic housing),
For refrigeration and deep-freezing
Cooling Capacity (litres):
With 35mm PU Insulation: 250 max (normal refrigeration) / 100 max (deep freezing)
With 50mm PU Insulation: 300 max (normal refrigeration) / 150 max (deep freezing)
Power Input: 60Watts
Current Consumption (Ah. h)
With 35mm PU Insulation: 2.50 (normal refrigeration) / 3.00 (deep freezing)
With 50mm PU Insulation: 2.00 (normal refrigeration) / 2.00 (deep freezing)
Dimensions: (WxHxD): 1373x305x10mmWeight: 4kg
Compressor Options: 6-60171, 6-60172, 6-60176
Optional Mains Adaptor: 6-60010
| Brand | Dometic |
