Johnson 09-1026B-1 Impeller Kit for F4B and F5B Pumps (MC97)

Description

The genuine Johnson MC97 flexible impeller is suitable for general water-pumping duties such as engine cooling, water transfer, wash down and bilge water pumping purposes. The Johnson flexible pump impeller is designed to be installed to the following Johnson F4 and F5 range of pumps.

The Johnson 09-1026B-1 can be used to replace the Jabsco 673-0001 Europe and USA flexible impeller, Perkins: 24880194, Volvo Penta: 804696, 875808, 897055 & 3593659, Westerbeke 21218. For applications containing diesel or light oils, use Johnson nitrile impeller 09-1026B-9.

Johnson Pump Impeller Suitability: Johnson F4B, F4B-4, F4B-9, F4B-903, F4B/6-M and F5B series pumps, including the following Johnson pump models: 10-22055-1, 10-22160-1, 10-24018-1, 10-24018-2, 10-24047-1, 10-24097-1, 10-24097-2, 10-24124-1, 10-24124-2, 10-24124-3, 10-24124-4, 10-24124-5, 10-24124-6, 10-24167-1, 10-24167-2, 10-24463-01, 10-24465-01, 10-24751-01, 10-24752-01, 10-31917-1, 10-32588-1, 10-35024-1, 10-35058-1, 10-35064-1, 10-35087-1, 10-35094-1, 10-35098-1, 10-35098-2, 10-35098-3 & 10-35098-4.

Johnson 09-1026B Impeller Engine Suitability:

- Bukh DV20 ME, DV20 SME, DV24 ME and DV24 SME engine pumps (10-35064-1 & 10-35241-1)

- CT Marine CT50, CT80, CT100, CT2000D and FD2000 engine pumps (10-35098-4)

- Dolphin Marine Baby Dolphin, Hydra, Nimbus, Saturn, Sinus and Super AV engine pumps (10-35098-2)

- Farymann CS engine pumps

- Fischer Panda: Panda PMS 6 KUB, Panda PMS 8 KUB, Panda PMS 10 KUB and Panda PMS 12 KUB engine pumps (10-24074-14)

- Hydromarine DM17 and DM25 engine pumps (10-35098-4)

- Iveco UNO M20 engine pumps

- Lombardini LDW 502 M, LDW 602 M, LDW 702 M, LDW 903 MLDW 1003 M, LDW 1204 M and LDW 1404 M engine pumps (10-35098-4)

- Perkins 3HD20, 3HD46, M25, M30, M35, M40, M50 Prima, M60 Prima, M80T Prima and MC42 engine pumps

- Ruggerini RM 270 engine pumps (10-35098-2)

- Tempest 1622 S, Commander 2.2D (DC), Commander 50HP (DC), Commander 50HP (DC), Commodore 34/38, Navigator 38, Vedette MkII-VI and Yeoman 36 engine pumps

- Volvo Penta AQ60F, AQ90, AQ95, AQ95A, AQ110, AQ115, AQ115A, AQ115B, AQ120, AQ130, AQ130A, AQ130B, AQ130C, AQ130D, AQ140, BB30, BB100, BB115, BB115B, BB115C, D1-13A, D1-13B, D1-20A, D1-20B, D1-30A, D1-30B, D2-40A, D2-40B, D2-55A, D2-55B, D2-55C, D2-55D, D2-55E, D2-75A, D2-75B, D2-75C, MB16A, MB18, MB18F, MB20, MB20A, MB20B, MB20C, MD3B, MD17C, MD17D, MD20B, MD2030 and MD2040 engine pumps (10-24465-01, 10-24751-01, 10-24752-01 & 10-35098-1)

- Watermota Sea Wolf 40 and Sea Tiger 50 engine pumps (10-35098-4)

- Yanmar 2GM20F, 2QM15, 2QM20, 3GM30F, 3HM, 3HM35, 3HM35F and 3QM30 engine pumps

As well as: Arona AD290, AD395, AD495, Fredrikstad Motor S2, S22, Industrimotor 3KC1M, Valmet Oy 4035PM, Vasa Motor, VM Motori 102 MH11, 102 MH11/SV, 956 M11, 1310 MH14, 1312 MH14, T 1310 MH14, T 1312 MH14, TI 1310 MH14 & TI 1312 MH14 engine pumps.

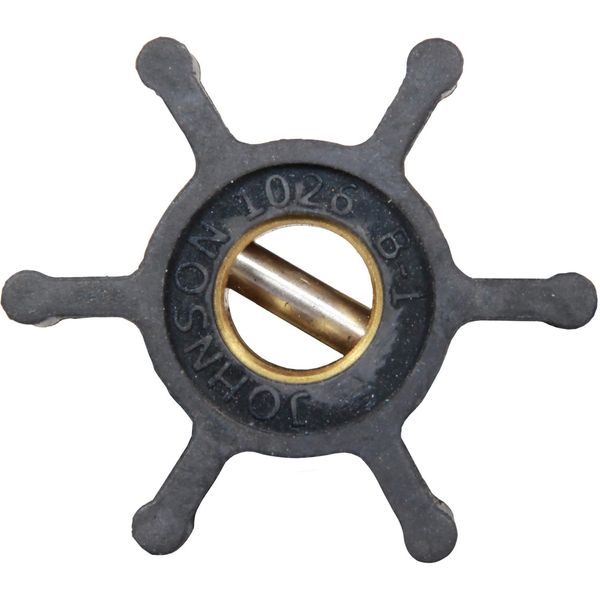

The Johnson flexible pump impeller has six blades and is supplied complete with gaskets, lubrication gel and instruction manual to aid installation of the impeller into the flexible impeller pump.

MC97 has been developed to meet new environmental regulations for rubber manufacturing processes and will replace the regular Johnson neoprene impeller compound. The development of MC97 has also resulted in an extended service life of the impeller compared to impellers in neoprene.

It is highly recommended to make sure you use an original pump impeller for your flexible impeller pump as this will ensure that the quality complies with the performance and dimension requirements for each pump type. Johnson Pump impellers are manufactured in strict compliance with the pump specifications set by the engine manufacturers.
