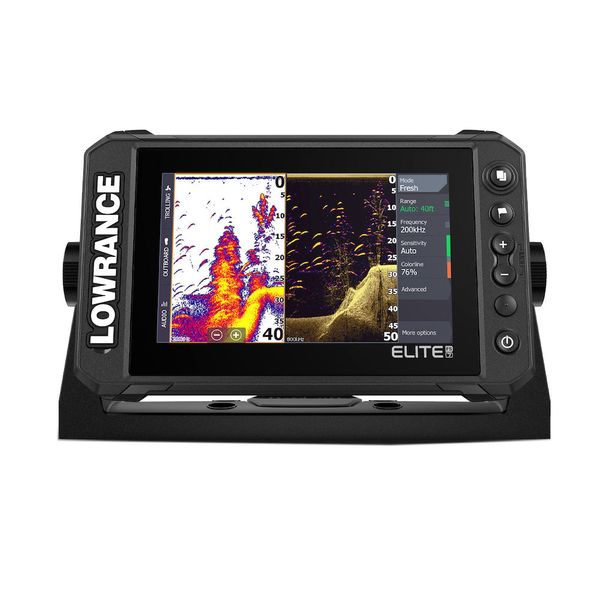

Lowrance Elite FS 7 Fishfinder with Active Imaging 3-in-1 Transducer (ROW)

Description

The Elite Fishing System (FS) combines the power of Lowrance's fish finding tools with a user-friendly and simple-to-install display, to provide the tools needed to find and catch more fish.

Structure and cover can be seen with unmatched refined detail with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal.

ActiveTarget™ Live Sonar allows the user to view high-resolution movements of fish, tracking them as they swim in and around cover.

Preloaded with a worldwide basemap, Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics and more.

Product contents:

• Elite FS 7 Fishfinder

• Active Imaging 3-in-1 Transducer (000-14489-001)

• Bracket (000-14586-001)

• Power Cable (000-14041-001)

• HDS Fuse & Fuse Holder (000-0127-50)

• Display Suncover (000-15778-001)

• Screen size: 7”

• Screen brightness: >1200 Nits

• Display resolution: 800 x 480

• Backlight colour: Pure White LED

• Map: Preloaded Basemap

• Transducer: Active Imaging 3-in-1™

• Backlight colour: Pure White LED

• Screen brightness: >1200 nits

• SD card storage: 1 micro SD card up to 32GB

• Ethernet ports: 1 x 100Mbit

• Update rate: 10 Hz

• GPS: 10 Hz Internal high-sensitivity WAAS + EGNOS + MSAS

• Shock vibration: 100,000 cycles of 20G

• Compass safe: 12" (300mm)

• GPS receiver channels: 16

• NMEA 2000 connectivity: 1x Micro-C

• Position accuracy: 20m RMS

• Waypoints, Routes, Tracks: 3000 Waypoints, 100 Routes, 100 Trails with up to 10,000 points per trail

• Time to first fix: 30s

• Radar compatibility: 4G (Broadband) 3G (Broadband) Halo20 (Pulse Compression Dome Radar) Halo20+ (Pulse Compression Dome Radar) Halo24 (Pulse Compression Dome Radar)

• Viewing angles: 50° top 60°bottom 70° left/right

• Humidity: 60°C, 95% relative humidity (RH) for 18 hours

• AIS: AIS Chart overlay. Target vessel detail

• Charts supported: C-MAP (MAX N, MAX N+) C-MAP Genesis C-MAP Precision Contour HD (AMER ONLY) Navionics (Gold, NAV+ Platinum+) Insight (Pro and HD) Lowrance Regional Mapping Partners

• Cartography included: C-MAP ROW Basemap (ROW models) Navionics basemap (AMER, AUS/NZ and ROW models)

• Correction: DGPS WAAS MSAS EGNOS GLONASS

• Mounting type: Gimbal Bracket or Dash Flush Mount

• Blue tooth Integrated: Bluetooth 4.0 with support for Bluetooth Classic

• Sonar compatibility: Integrated: CHIRP Broadband Active Imaging DownScan Active Imaging SideScan Compatible with: SonarHub StructureScan StructurreScan 3D LiveSight Active Target

• Connectivity WiFi: Internal 802.11b/g/n

• Interface: Multi-Touch Touchscreen Zoom +/- MOB = (+/- combined) Pages Waypoint Light/Power

• Autopilot: Outboard Pilot Ghost Trolling Motor MotorGuide Xi5/Xi3 Trolling Motor * *requires Motorguide PinPoint Gateway

• Multimedia: SonicHub SonicHub2 FusionLink products any NMEA 2000 compliant Marine Aduio products
