Maestrini Brass Bracket Mounted Water Strainer (1-1/4" BSP Female)

Name: Maestrini Brass Bracket Mounted Water Strainer (1-1/4" BSP Female)
SKU: 401306

Product code: 401306
Manufacturer SKU: 0006G

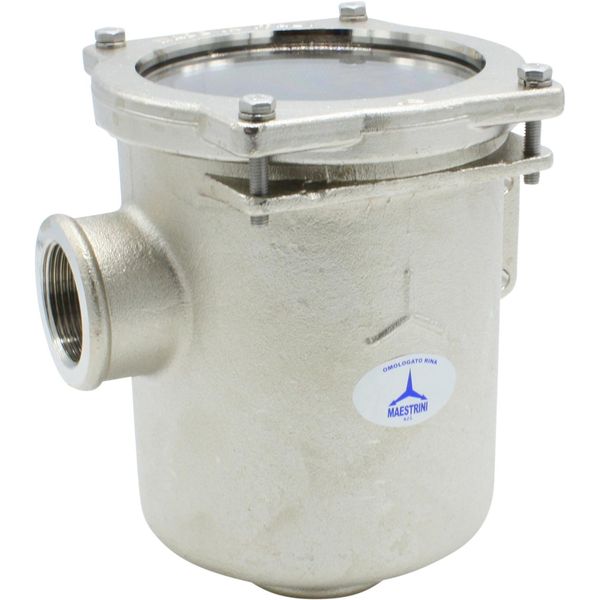

The Maestrini high capacity remote mount water strainer is constructed from brass with a polycarbonate transparent lid with O-ring seal. The polycarbonate filter basket is easy to clean and can be accessed... Read more

Description

The Maestrini remote water strainer is designed to be bracket mounted through the side using the integral mounting lugs. The 1-1/4" BSP female inlet port is located on the base of the strainer and the 1-1/4" BSP female outlet port is on the side of the body.

Specifications

Flow Rate Description	10,960 LPH at 0.1 Bar, 34,670 LPH at 1 Bar
Material	Brass with Polycarbonate Filter Basket & Polycarbonate Clear Top
Primary Construction	Brass
Strainer Design	Remote Bracket Mount
Thread Connection	BSP
Thread Fitting Size	1-1/4"
Thread Gender	Female
Thread Size	1-1/4" BSP Female
Brand	Maestrini
Series	Venezia
Approvals	Fire Tested in Accordance to ISO 7840, Annex A. Complies to Seafish Standards.
Height Description	191mm (7-1/2")
Width	177mm
Diameter Description	Bolt Holes: 7mm ID
Dimensions	Distance Between Mounting Hole Centres: 37mm
Country of Origin	Italy
Mounting Description	Bracket Mount
