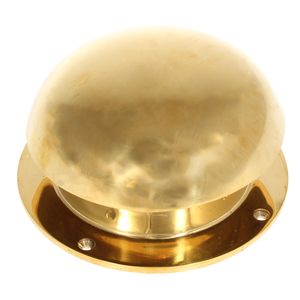

Maestrini Brass Water Intake Scoop (Full Slot / 1-1/2" BSP)

Maestrini Brass Water Intake Scoop (Full Slot / 1-1/2" BSP)

Name: Maestrini Brass Water Intake Scoop (Full Slot / 1-1/2" BSP)
SKU: 402427

Product code: 402427
Manufacturer SKU: 0045H

Description

Maestrini water intake scoop strainer made from brass, with a full slotted grating and bop thread. This 402427 intake scoop is designed for raw water intake systems, such as those used in static intakes like toilets and gensets. It fits through the hull with the grating on the outside and the male 1.5" bop threaded pipe leading inside, usually to a valve to open and close the intake.

The scoop grating can be secured to the hull using a marine sealant and is also fixed with a back locking nut and washer.

Important note: All fittings used for through hull applications must be correctly electrically bonded to ensure protection from electrolytic corrosion. Brass is susceptible to dezincification and may not last as long as other materials in below waterline through hull applications.

Specifications

Material	Brass
Fitting	Scoop Strainer
Primary Construction	Brass
Strainer Design	Scoop
Thread Connection	BSP
Thread Fitting Size	1-1/2"
Thread Gender	Male
Pressure Rating	363 PSI (25 Bar)
Thread Size	1-1/2" BSP Male Parallel
Brand	Maestrini
Height Description	115mm (4-1/2")
Length	Thread: 84mm, Grating: 133mm
Dimensions	3mm Grate Spacing
Country of Origin	Italy
