Marinco Wiper Kit 1000 Waterproof 2-1/2" Shaft 80 Degree 12V
Product code:
6-11248
Manufacturer SKU:
37100
Kit Includes6-11244 Motor6-11341 10" -14" Arm14" Polymer wiper blade1000 Waterproof Wiper motor specificationPowers 16" (406mm) Deluxe arm and 16" (406mm) Deluxe blade... Read more
Description

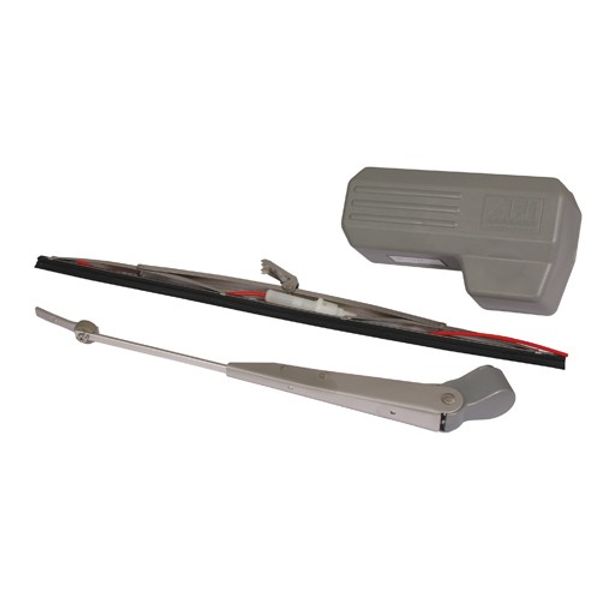

Kit Includes
6-11244 Motor
6-11341 10" -14" Arm
14" Polymer wiper blade
1000 Waterproof Wiper motor specification
Powers 16" (406mm) Deluxe arm and 16" (406mm) Deluxe blade combinations at a sweep set of 110°
Factory pre-set sweep of 80°, adjustable to 50°, 65°, 80°, or 110°
0.625" (16mm) diameter shaft
Fully sealed waterproof housing made of UV stabilized, high temperature, high-impact thermoplastic
12 volt heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
Includes 5 amp fuse and holder (on/off switch not included)
RF shielded circuitry
Weight: 1.75 lbs (0.79kg)
Shaft length: 2.5" (68mm), *includes 0.5" (13mm) length of knurled arm fitting
Measures approximately (L x W x D): 6.625" (168mm) x 3.375" (86mm) x 2" (51mm)
Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current: 9.8 - 10.0 amps
No load current: 0.8 - 1.2 amps
| Brand | Marinco |
| Voltage Description | 12V DC |
