Quick DP2 712 Windlass Gypsy & Recyclable Gearbox (700W / 12V / 6mm)

Name: Quick DP2 712 Windlass Gypsy & Recyclable Gearbox (700W / 12V / 6mm)
SKU: Q2DP2131101

Product code: Q2DP2131101
Manufacturer SKU: FSDP20712006B00

Description

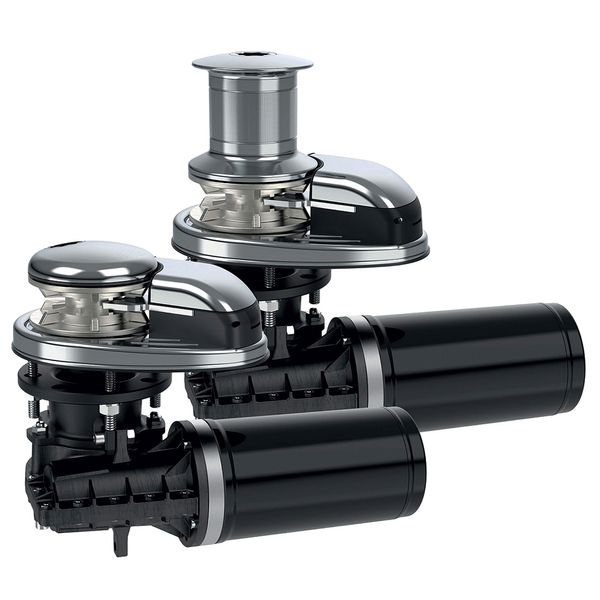

The Quick DP2 Prince 712 vertical windlass is suitable for boats from 7m to 12m (23 to 40ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 6mm (1/4") gypsy which is suitable for 6mm ISO chain and a 1/2" rope.

Specifications

Primary Construction	Stainless Steel
Suitable For	Chain and Rope
Boat Size	7 to 12 metres in length
Gypsy Size	6mm
Brand	Quick
Series	Prince DP2
Model	712
Voltage Description	12V DC
Wattage	Motor Power: 700W
Working Load	100kg (220 lb), Maximum: 300kg (661 lb)
Maximum Pull Load	680kg (1499 lb)
Maximum Chain Speed	22.6 m/min (74.1 ft/min), At Working Load: 11.6 m/min (39.1 ft/min)
Amps Description	Current Absorbtion At Working Load: 95A
Contents	Contactor Units, Nylon Handle, Drilling Template, User Manual
Height Description	237.4mm (9-11/32")
Depth	219.5mm (8-41/64")
Weight	13.7kg (30lb)
