Quick DP3 1012 Windlass Kit (8mm / 12V)

Name: Quick DP3 1012 Windlass Kit (8mm / 12V)
SKU: Q2DP3191103K

Product code: Q2DP3191103K
Manufacturer SKU: FSDP31012008B09

Description

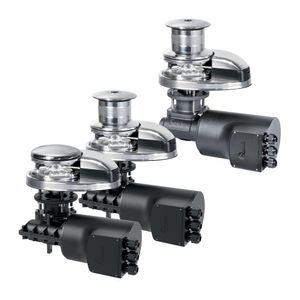

The Quick DP3 Prince 1012 vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" - 9/16" - 5/8" rope. This version also comes with a drum attached. This is the kit version of the 1012, this kit includes a contactor unit, nylon handle, foot switch and a hydraulic magnetic circuit breaker.

Specifications

Primary Construction	Stainless Steel
Suitable For	Chain and Rope
Boat Size	10 to 14 metres in length
Gypsy Size	8mm
Brand	Quick
Series	Prince DP3
Model	1012
Voltage Description	12V DC
Wattage	Motor Power: 1000W
Working Load	120kg (264 lb), Maximum: 370kg (816 lb)
Maximum Pull Load	1000kg (2205 lb)
Maximum Chain Speed	39.6 m/min (129.2 ft/min), At Working Load: 20.4 m/min (66.9 ft/min)
Amps Description	Current Absorbtion At Working Load: 140A
Fuse	80A Protection Circuit Breaker
Contents	Contactor Units, Nylon Handle, Foot Switch, Hydraulic Magnetic Circuit Breaker, Drilling Template, User Manual
Height Description	254.4mm (10-1/64")
Depth	233.5mm (9-3/16")
Weight	19.4kg (42lb)
Size	Motor Cable: 35mm2 (AWG2)
