Quick DP3 1024D Windlass Gypsy & Drum Mk2 (1000W / 24V / 8mm)

Name: Quick DP3 1024D Windlass Gypsy & Drum Mk2 (1000W / 24V / 8mm)
SKU: Q2DP3193203

Product code: Q2DP3193203
Manufacturer SKU: FSDP31024D08B00

Description

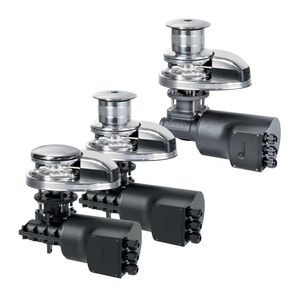

The Quick DP3 Prince 1024D vertical windlass is suitable for boats from 10m to 14m (33 to 46ft). The vertical mount windlass is easy to install with an AISI 316 Stainless Steel base and fitted with the new 100% recyclable technopolymer gearbox. Featuring an integrated sensor and magnet for chain counter and a manual free-fall system. The Quick windlass features a 8mm (5/16") gypsy which is suitable for 8mm ISO chain and a 1/2" - 9/16" rope. This version also comes with a drum attached.

Specifications

Primary Construction	Stainless Steel
Suitable For	Chain and Rope
Replaces	Quick FSDP31024D08A00
Boat Size	10 to 14 metres in length
Gypsy Size	8mm
Brand	Quick
Series	Prince DP3
Model	1024D Mk2
Voltage Description	24V DC
Wattage	Motor Power: 1000W
Working Load	150kg (331 lb), Maximum: 450kg (992 lb)
Maximum Chain Speed	40.9 m/min (134.2 ft/min), At Working Load: 21.4 m/min (70.2 ft/min)
Amps Description	Current Absorbtion At Working Load: 80A
Fuse	50A Protection Circuit Breaker
Contents	Contactor Units, Nylon Handle, Drilling Template, User Manual
Height Description	319.4mm (12-37/64")
Depth	233.5mm (9-3/16")
Weight	19.4kg (42lb) without drum
Size	Motor Cable: 16mm2 (AWG5)
