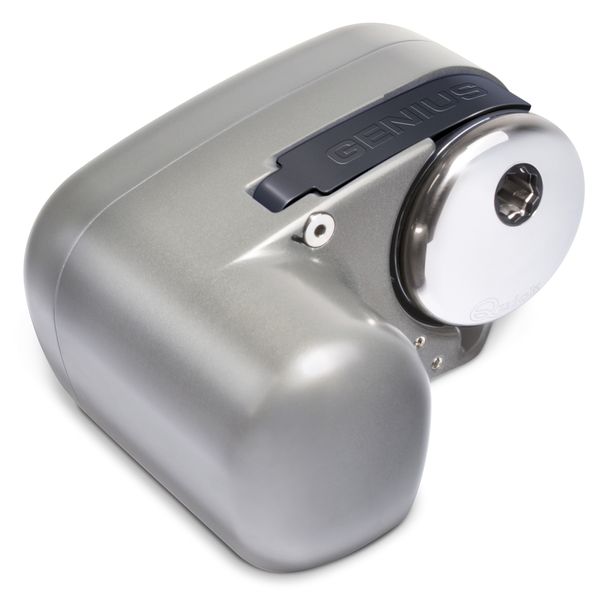

Quick GP2 2000 Windlass Gypsy Only (800W / 24V / 6mm)

Product code: Q-GP2153101
Manufacturer SKU: FSGP22024006A00

The Quick GP2 2000 horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 24V T6415-24 contactor unit and a lever for the windlass as standard. To ensure... Read more

Description

Description

The Quick GP2 2000 horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 24V T6415-24 contactor unit and a lever for the windlass as standard. To ensure durability and top performance, the windlass has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).

This windlass has a 6mm gypsy which is suitable for 6mm DIN 766 and 6mm ISO chain, as well as 1/2" (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

Product contents include the windlass (on deck unit and motor gearbox), contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user's manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

Anodized alluminium in hard oxide base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Epicyclical gearbox

Specifications
Primary Construction Aluminium
Suitable For Chain and Rope
Boat Size 8 to 13 metres in length
Gypsy Size 6mm
Brand Quick
Series Genius
Model GP2 2000
Voltage Description 24V DC
Wattage 800W
Working Load 120kg (265 lb)
Maximum Pull Load 900kg (1984 lb)
Maximum Chain Speed 29.6mm (97.1 ft/min) At Working Load: 20.1mm (65.9 ft/min)
Amps Description 50A at 120kg
Fuse 40A Protection Circuit Breaker
Contents Windlass, reversing contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals CE
Height Description 135mm (5-5/16")
Width 217mm (7-31/32")
Depth 249mm (9-25/32)
Weight 10.2kg (22.4 lb)
Thickness Deck: 20mm - 40 mm (3/4” - 1” 9/16)
Size Motor Cable: 10mm2 (AWG 7)
