Quick GP2 2000F Windlass Free-Fall (800W / 24V / 6mm)

Quick GP2 2000F Windlass Free-Fall (800W / 24V / 6mm)

Name: Quick GP2 2000F Windlass Free-Fall (800W / 24V / 6mm)
SKU: Q-GP2153501

Product code: Q-GP2153501
Manufacturer SKU: FSGP22024F06A00

Description

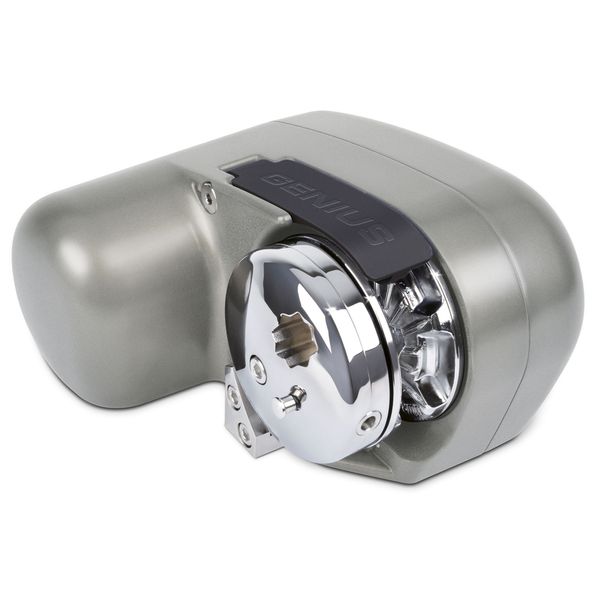

The Quick GP2 2000F horizontal on-deck windlass is suitable for boats from 8-13 meters (26-43 ft) and is supplied with a 24V T6415-24 contactor unit and a lever for the windlass as standard. To ensure durability and top performance, the windlass has an anodized aluminium in hard oxide base and an epicyclical gearbox that provides much higher efficiency (+40% compared to equivalent traditional gearboxes).

This windlass has a 6mm gypsy which is suitable for 6mm DIN 766 and 6mm ISO chain, as well as 1/2" (12.7mm) rope. (PLEASE NOTE these values refer to a three-strand polyester rope with a rope/chain splice manufactured with the Quick® system).

This particular model features Free-Fall technology which allows free running of chain through the gypsy when lowering the anchor. Simply by pressing the down control button, the windlass will release its clutch and the gypsy will freewheel. To stop the Free-Fall, press the up control button on the windlass and the clutch will engage stopping the gypsy and allowing retrieval of the chain.

Product contents include the windlass (on deck unit and motor gearbox), drum, contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user's manual and conditions of warranty.

Key Features

Horizontal on-deck windlass

Automatic Free-Fall System

Anodized alluminium in hard oxide base

Rope and chain on a single gypsy

Integrated sensor and magnet for chain counter

Supplied with pressure lever

IP66 watertight motor

Epicyclical gearbox

Specifications

Primary Construction	Aluminium
Suitable For	Chain and Rope
Boat Size	8 to 13 metres in length
Gypsy Size	6mm
Brand	Quick
Series	Genius
Model	GP2 2000F
Voltage Description	24V DC
Wattage	800W
Working Load	120kg (265 lb)
Maximum Pull Load	900kg (1984 lb)
Maximum Chain Speed	29.6mm (97.1 ft/min) At Working Load: 20.1mm (65.9 ft/min)
Amps Description	50A at 120kg
Fuse	40A Protection Circuit Breaker
Contents	Windlass, reversing contactor unit, base gasket, drill template, handle, bolts and screws (for assembly), user’s manual and conditions of warranty.
Approvals	CE
Height Description	135mm (5-5/16")
Width	217mm (7-31/32")
Depth	249mm (9-25/32)
Weight	10.9kg (24 lb)
Thickness	Deck: 20mm - 40 mm (3/4” - 1” 9/16)
Size	Motor Cable: 4mm2 (AWG 12)
