Scanstrut DS-HD10-BLK Horizontal Double Cable Seal (6mm-10mm / Black)

Scanstrut DS-HD10-BLK Horizontal Double Cable Seal (6mm-10mm / Black)

Name: Scanstrut DS-HD10-BLK Horizontal Double Cable Seal (6mm-10mm / Black)
SKU: 6-80730

Product code: 6-80730
Manufacturer SKU: DS-HD10-BLK

Description

Scanstrut DS-HD10-BLK double cable seal was designed to eliminate time-consuming and sub-standard routing of solar panel cables. This seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats, campervans, and agricultural vehicles. Its low-profile design provides the best water ingress protection for the smallest mounting footprint in its class.

• Designed for two cables.

• IP68 watertight seal.

• Install 2 cables – select any combination: 6mm, 7mm, 8mm, 9mm, 10mm or Blank.

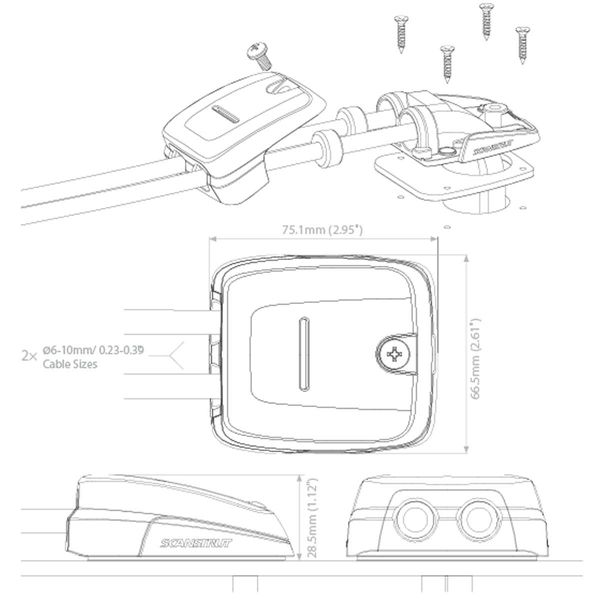

• Compact footprint - just 66.5mm (2.61") W / 75.1mm (2.95") L / 28.5mm (1.12") H.

• Easy fit cable routing that cuts down your installation time through wood, metal, and GRP.

• Black high impact plastic.

• Includes 316 stainless steel fixings and a waterproof 3M gasket.

• The low-profile construction is impact-resistant and provides extra protection from water.

• Scanstrut's materials have been selected to be UV- stable and hard-wearing.

• No messy sealant on bungs.

Key Features

Tapered bung forms watertight seal

Supplied with a closed-cell base seal - 100% waterproof

IPX6 & IPX7 tested & approved

Captive nuts make for easy assembly & also allow reliable repeat installations

Each unit supplied with both pre-drilled & blank inner seals to make your installation as easy as possible

Specifications

Material	High impact plastic
Waterproof	Yes
Brand	Scanstrut
Colour	Black
Height Description	28.5mm (1.12")
Width	66.5mm (2.61")
Length	75.1mm (2.95")
Diameter Description	6-10mm Cable
