Name: Scanstrut SC30 Satcom Antenna Mount for KVH Intellian Raymarine Cobham
SKU: 6-80616

Product code: 6-80616
Manufacturer SKU: SC30

Maximise your antenna's performance with the Scanstrut SC30 satcom antenna mount, manufactured from a single-piece composite GRP moulding for a high strength, corrosion-free mounting. Easily install... Read more

Description

Scanstrut SC30 mount reduces the overall footprint of your satcom antenna, giving you a greater choice when of where to install it and also making for an easier installation on narrow radar arches. All cables for the antenna are routed through the base of the mount for a clean and simple finish.

The satcom antenna mount is suitable for the following:

- Cobham SAILOR 150 & SAILOR 250 FleetBroadBand

- Intellian FB150 in i2, FB250 in i2, FB250R in i2 & i1

- KVH TracPhone FB150, TracPhone Fleet One, TracPhone LTE-1, TracVision M1 & TracVision TV1

- Raymarine 33STV

- Neat Installation

- Satcom mount fixings hidden internally

- Easy to Install & Maintain

- Antenna fixings external for ease of antenna installation and maintenance

- Watertight Installation

- Includes factory fitted watertight seal (KVH FB150, FB250 compact, Thrane & Thrane F33)

- Drainage hole to be drilled for KVH FB150/250 compact, or Thrane F33)

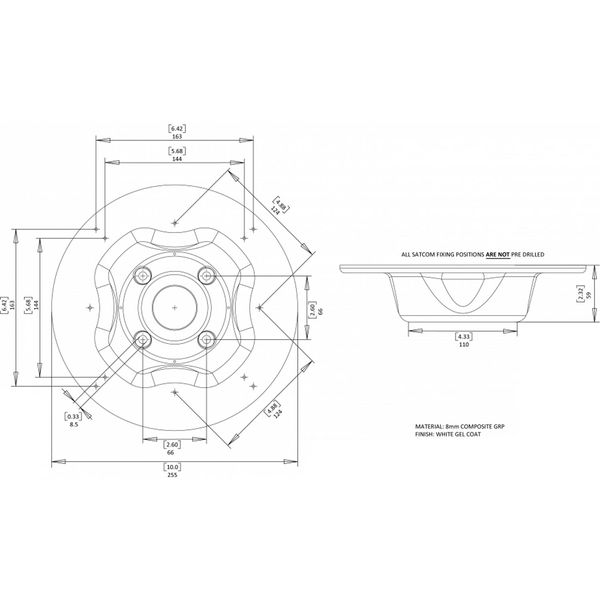

Specifications

Material	8mm Composite GRP with White Gel Coat
Brand	Scanstrut
Height Description	59mm (2.32")
Diameter Description	Top: 255mm (10"), Bottom: 110mm (4.33"), Cable Routing Hole: 30mm - 50mm (1-1/4" to 2"), Mounting Screw Holes: 4x 8.5mm, Drain Hole (if drilled): 3mm (1/8")
Dimensions	Distance between mounting hole centres (if drilled): KVH M1: 163mm x 163mm (6.4" x 6.4"), Intellian i1, 12: 140mm x 140mm (5.7" x 5.7"), FB150/250 compact, T&T F33: 175.4mm PCD
