Name: Scanstrut SC45R Satcom Antenna Mount for Intellian and Raymarine
SKU: 6-80619

Product code: 6-80619
Manufacturer SKU: SC45R

Maximise your antenna's performance with the Scanstrut SC45R satcom antenna mount, manufactured from a single-piece composite GRP moulding for a high strength, corrosion-free mounting. Easily install... Read more

Description

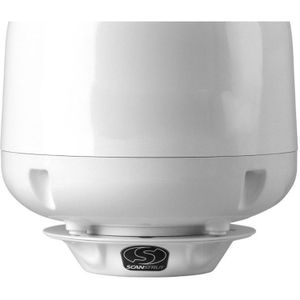

Scanstrut SC45R mount reduces the overall footprint of your satcom antenna, giving you a greater choice when of where to install it and also making for an easier installation on narrow radar arches. All cables for the antenna are routed through the base of the mount for a clean and simple finish.

The satcom antenna mount is suitable for the following:

- Intellian d4, i4 & k4

- Raymarine 45STV

The SC45R kit contains:

- SC45 Composite Moulding

- Expanded Polyethylene Seal 2mm thick, double sided adhesive

- 45STV Adapter Plate

- Neat Installation

- Satcom mount fixings hidden internally

- Easy to Install & Maintain

- Antenna fixings external for ease of antenna installation and maintenance

- Watertight Installation

- Includes factory fitted watertight seal

Mounting on a curved arch? Scanstrut's SC50 Adjustable Base Wedge accessory (part number 6-80620), will solve your problem and level your Satcom installation.

Specifications

Material	8mm Composite GRP with White Gel Coat
Brand	Scanstrut
Contents	SC45 Composite Moulding, Expanded Polyethylene Seal 2mm Thick, Double-Sided Adhesive & 45STV Adapter Plate

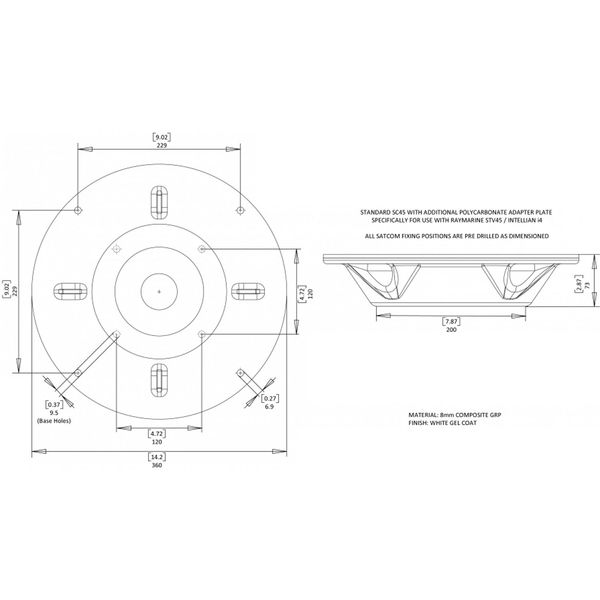

Height Description	73mm (2.87")
Diameter Description	Top: 360mm (14.17"), Bottom: 200mm (7.87"), Base Screw Holes: 9.5mm (0.37"), Mounting Screw Holes: 6.9mm (0.27")
Dimensions	Distance between mounting hole centres: 229mm x 229mm (9.02" x 9.02"), 120mm x 120mm (4.72" x 4.72")
