Scanstrut SPH-9-W ScanPod Helm Pod for Displays Up To 9" (Garmin)

Scanstrut SPH-9-W ScanPod Helm Pod for Displays Up To 9" (Garmin)

Name: Scanstrut SPH-9-W ScanPod Helm Pod for Displays Up To 9" (Garmin)
SKU: 6-80647

Product code: 6-80647
Manufacturer SKU: SPH-9-W

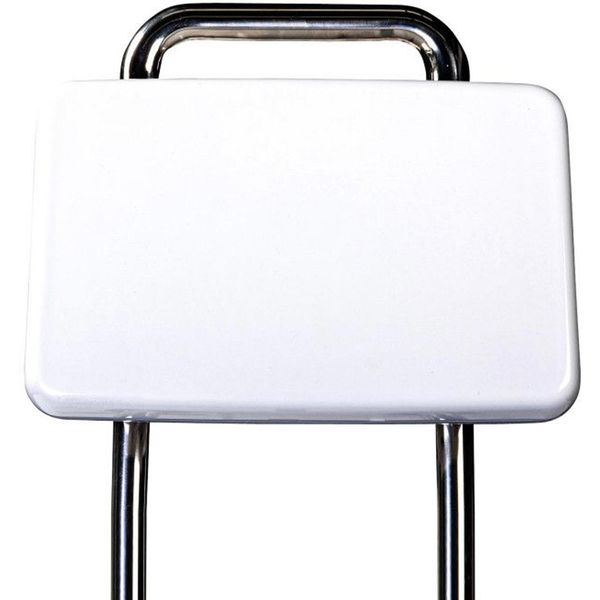

Scanstrut SPH-9-W ScanPod Helm Pod is designed for mounting your display right where you need it. The Helm Pod fits pedestal rails from 25mm to 33.7mm (0.98" - 1.33") in diameter. This allows you to... Read more

Description

Scanstrut Helm Pod SPH-9-W fits the following devices:

Chartplotters & Fishfinders:

- B&G Zeus 8 & Zeus2 9

- Furuno 1724C / 1734C, GD-1720C & MFD8

- Garmin EchoMap Ultra 10", GPSMap 1022/1022xs, GPSMap 1042xsv, GPSMap 4008 / 5008 / 6008, GPSMap 7410 / 7610 & GPSMap 8410

- Humminbird 998cx SI, Helix 8 G3, Helix 9 G3, Onix 10, Onix 8 & Solix 10 Chirp Mega SI+ G3

- Lowrance Elite 12 Ti / Ti2 & Elite FS 9

- Northstar 6100i - 6.4" & 8.4"

- Raymarine a95, a97, a98 MFD, Axiom Pro 9S / 9RVX, C Series - C80, C Series - C90W, E Series - E80, E90W, E90W/A95, ES 95/97/98, Raychart 620 & RL70

- Simrad NSE-8, NSS-9, NSS-9 evo2, NSS-9 evo3s, NSS7 evo4 & NSS9 evo3

Instruments & Autopilots:

- Northstar Explorer AP380

- Universal helm fixing: Fits pedestal rails 25mm - 33.7mm (0.98" - 1.33") OD.

- Secure & watertight install: Saddle system supports the stainless tubing enabling a secure & rigid fit onto any pedestal & also ensures a watertight seal at cable entry.

- No drill fixing kit: Customised U-bolts fit around the rail & through the saddles into the back of the pod eliminating the need for time consuming & awkward drilling of the stainless rail.

- Hassle-free install & service: Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the Pod front. This design allows for a quick & safe installation & repeat servicing.

- Increased protection: Pod seal is made from a high tear strength silicone, it has a very high resistance to heat & UV so you can have confidence that it won’t deteriorate over time.

- Supplied uncut: As standard you will receive your scanpod uncut. For a small charge Scanstrut offer a factory cutting service.

Specifications

Tilt	7°
Brand	Scanstrut
Cut Out	Maximum Display: 314mm x 185mm (12.3" x 7.3")
Height Description	243mm (9.56")
Width	374mm (14.7"), Fits distance between mounting rails: 152.4mm to 304.8mm (6" - 12")
Depth	167mm (6.6")
Diameter Description	For Pedestal Rail OD: 25mm to 33.7mm (0.98" - 1.33")
Dimensions	Maximum Usable Face: 336mm x 207mm (13.2" x 8.14")
