Scanstrut SPR-1I-AM ScanPod Arm Pod for 1 Standard Instrument

Scanstrut SPR-1I-AM ScanPod Arm Pod for 1 Standard Instrument

Name: Scanstrut SPR-1I-AM ScanPod Arm Pod for 1 Standard Instrument
SKU: 6-80650

Product code: 6-80650
Manufacturer SKU: SPR-1i-AM

Description

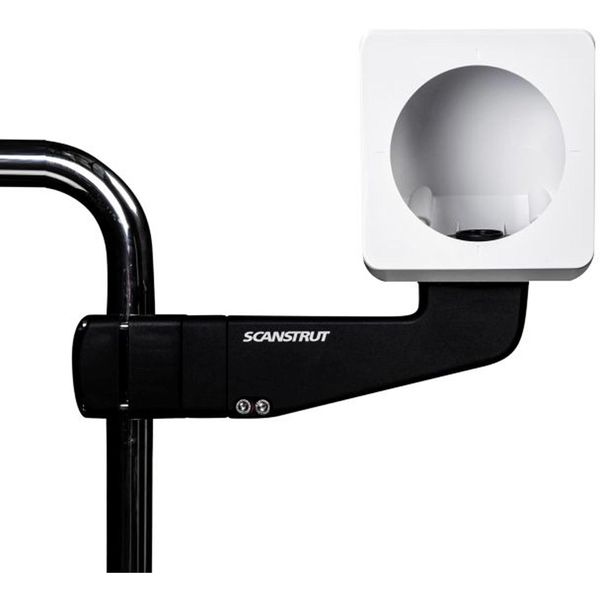

Scanstrut SPR-1i-AM is the cleanest way to rail mount your instrument. Scanstrut's Arm Pod allows you to install your instrument onto any standard or curved rail from 25mm to 33.7mm (0.98" - 1.33") in diameter. Waterproof internal cable routing allows you to seamlessly run your cables through the bottom of the pod, the machined aluminium clamp and into the rail.

This arm pod fits the following devices:

Instruments & Autopilots:

- B&G 10 / 10 HV & Triton

- Furuno FI-50 STD Instruments, NAVpilot-300 & NAVpilot-711C

- Garmin GHC 20, GMI 10, GMI 20, GNX, GNX 20 & GNX 21

- Nexus NX, NX2 Digital & NX2 Analogue

- Northstar Explorer 310 Instruments & Explorer AP380

- Raymarine i70, p70, p70r, ST290 Analogue, ST60+, ST70 & T100 Series

- Simrad AP24, IS20, IS35 Digital Gauge, IS70 & IS80

- Sitex SP120

- Tacktick Maxi Display T100 Series

- Designed for 1 standard instrument (e.g. ST60)

- Secure & watertight install: The arm mount enables a secure fit onto any pedestal & ensures a watertight seal at the cable entry point.

- Hassle-free installation & service: Fixings fit from back to front cutting their threads into injection moulded ABS inserts designed into the pod front. This design allows for a quick & safe install & repeated servicing.

- Increased protection: Pod seal is made from a high tear strength silicone, it has a very high resistance to heat & UV so you can have confidence that it won’t deteriorate over time.

- Supplied cut: SPR-1i-AM ScanPods will be supplied pre-cut.

Specifications

Brand	Scanstrut
Cut Out	91mm (3.6")
Height Description	Pod: 173.5mm (6.8"), Rail Clamp: 55mm (2.16")
Width	Pod: 120mm (4.7")
Depth	Overall: 98mm (3.8"), Front: 44mm (1.7"), Back: 54mm (2.1")
Length	Overall: 227.5mm (9"), Arm: 198.5mm (7.8")
Diameter Description	Pod Rotation OD: 155mm (6.1"), Fits Rail OD: 25mm to 33.7mm (0.98" - 1.33")
