Scout KS-12 1db Compact VHF Antenna 0.2M (8") with 6M Cable

Scout KS-12 1db Compact VHF Antenna 0.2M (8") with 6M Cable

Name: Scout KS-12 1db Compact VHF Antenna 0.2M (8") with 6M Cable
SKU: 6-64028

Product code: 6-64028
Manufacturer SKU: PF AN NVHF00028

Description

The Scout KS-12 compact VHF antenna is suitable for all kinds of boats, matching the design of both Scout Wave antennas and Sea-Connect. The marine antenna measures only 20cm high and 11cm in diameter. This antenna features a UV resistant ASA body which is 100% waterproof and protected against colour deterioration. It features a high gloss ice white finish.

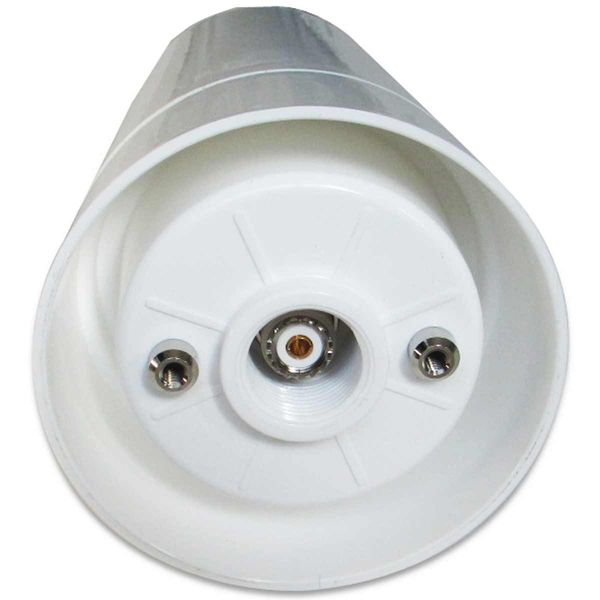

The antenna is easy to install on standard 1" x 14 threaded mounts or on the deck as a permanent fixture with the through-hole mounts (on non-metal surface/enclosure).

The 1db gain VHF antenna has a SO 239 connector and comes with a 6 metre (20') RG-58 CU MIL coaxial cable and two PL-259 male connectors.

Electrical length: 1/2 λ

Polarisation: Vertical

Specifications

Gain	1 db
Impedance	50 ohm
Material	UV Resistant ASA Body
Supplied With	5m Coax Cable & 2x PL-259 Connector
Frequency	156-162MHz
Style	HDTV Antenna
Antenna VSWR	< 1.5:1
DC Ground	Yes
Frequency Description	156-162MHz
Thread Size	1" x 14
Brand	Scout
Model	KS-12
Wattage	50W maximum
Length	0.2M (8")
Weight	0.30kg
Diameter Description	11cm (4")
Country of Origin	Italy
