Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)

Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)

Name: Scout Quick 1 3db VHF Fibreglass Antenna 1M with 5M Cable (White)
SKU: 6-64033

Product code: 6-64033
Manufacturer SKU: PF AN NVHF00033

Description

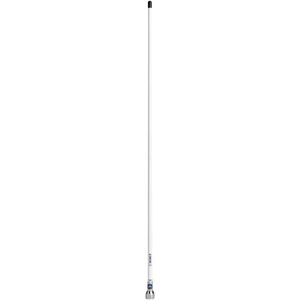

The Scout Quick 1 marine antenna is ready-to-install and easy-to-remove, with it's QuickFit design there is no need to install RF connectors. Ideal for motorboats and sail boats. Scout's QuickFit antennas are built with FME type terminals, supplied with coaxial cables with pre-installed connectors. This antenna does not require any specific equipment or tools to install on the boat, whether on deck, rail or mast. Installation is simple - no technical skills are required.

The Quick 1 VHF antenna measures 1 metre long, and guarantees the same performance as a 1.5m long marine antenna. It features a 1.4mm thick fibreglass whip which is foam injected and 100% waterproof. With a high gloss, ice white finish with anti-UV filter to prevent colour deterioration.

The 3db fibreglass antenna comes with a 5 metre (16.4') RG-58 CU MIL coaxial cable and a FME male to PL-259 male adaptor to complete the installation.

Electrical length: 1/2 λ

Polarisation: Vertical

Specifications

Gain	3 db
Impedance	50 ohm
Material	Fibreglass Whip
Supplied With	5m Coax Cable & Adaptor FME Male to PL-259 Male
Frequency	156-162MHz
Style	Fibre Glass Antenna
Antenna VSWR	< 1.5:1
DC Ground	Yes
Frequency Description	156-162MHz
Thread Size	1" x 14
Brand	Scout
Model	Quick 1
Wattage	50W maximum
Length	1M (3ft 3")
Weight	0.47kg
Country of Origin	Italy
