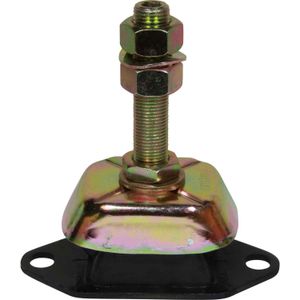

Vetus K100 Flexible Engine Mount (100kg Max Load)
Product code:
V-KSTEUN100
Manufacturer SKU:
KSTEUN100V
Vetus KSTEUN100 is a flexible engine mount designed for use with marine engines. The flexible mounting contains a special rubber compound which has excellent damping properties, absorbing vibrations... Read more
Description
Vetus KSTEUN100 is a flexible engine mount designed for use with marine engines. The flexible mounting contains a special rubber compound which has excellent damping properties, absorbing vibrations and propeller thrust.
This engine mount is suitable for small engines up to approximately 80HP.
- Vertical Stiffness: 1
- Athwartship Stiffness: 0.75
- Fore and Aft Stiffness: 2.5
- Minimum Static Compression: 2mm
- Maximum Dynamic Compression: 4mm
- Hardness: 65° Shore
| Maximum Load Description | Dynamic: 100kg (220.4lbs) |
| Hole Centres | 100mm (4") |
| Engine Mount | Vetus Engine Mounts |
| Stud Size | M16 x 1.5 |
| Brand | Vetus |
| Model | K100 |
| Working Load | Minimum Static Load: 50kg |
| Height Description | 122mm (4.8") |
| Dimensions | Base: 120mm x 60mm x 45mm |
