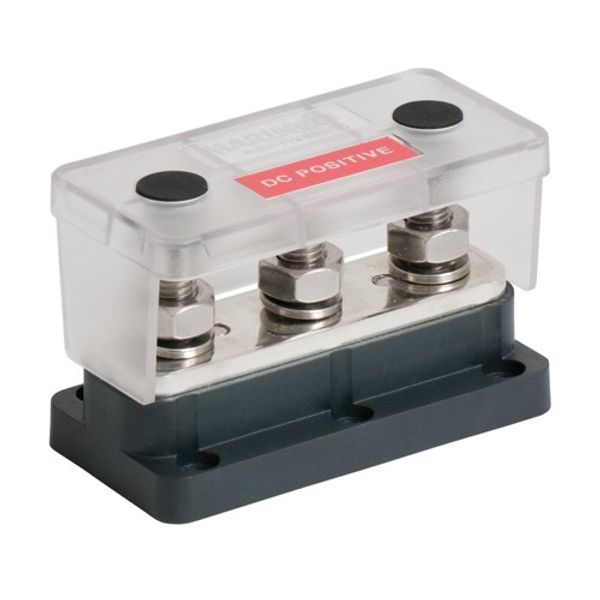

BEP Pro-Installer Busbar HD 3 Stud 650A
Product code:
8-93501
Manufacturer SKU:
777-BB3S-650
Pro Installer Heavy Duty Busbars provide a robust means to connect (bus) together the multitude large cables found in modern electrical installations. These offer unrivalled flexibility to meet the... Read more
Description
Pro Installer Heavy Duty Busbars provide a robust means to connect (bus) together the multitude large cables found in modern electrical installations. These offer unrivalled flexibility to meet the requirements of any installation saving significant cost and space.
Specifications:
4 Stud-500A busbar: 8mm (5/16") stainless steel studs
3 5 and 8 stud-650A busbars: 10mm (3/8") stainless steel studs
Studs treated with anti-seize lubricant
50 VDC
Tinned CDA102 Copper conductors
Stainless steel studs washers nuts for longevity in the marine environment
Generous stud lengths metric threads
| Brand | BEP |
| Rating | 150A |
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
| Part No | 8-93501 | 8-93502 | 8-93503 |
| Description | 3 Stud Busbar | 4 Stud Busbar | 5 Stud Busbar |
| Stud Detail | 3x10mm | 4x8mm | 5x10mm |
| Amps | 650A | 500A | 650A |
| Dimensions (mm) | 98X49X61 | 98X49X61 | 147X49X64 |
| Weight | 294g | 272g | 506g |
| Footprint | 1x | 1x | 1.5x |
