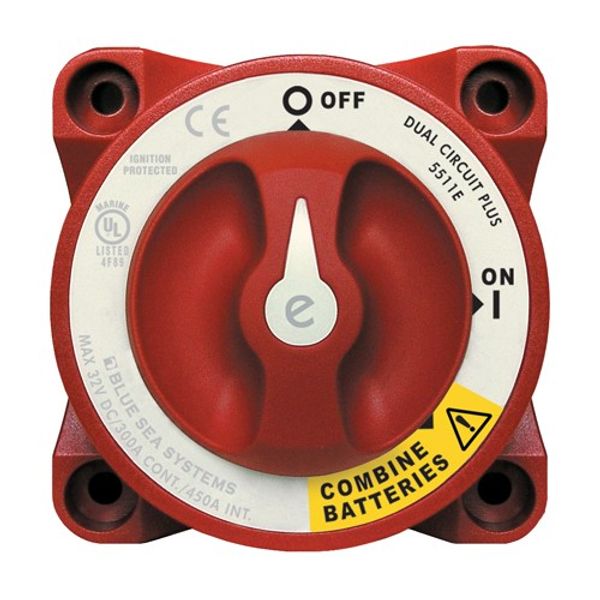

Blue Sea Dual Circuit Plus Battery Switch
Product code:
8-25511
Manufacturer SKU:
5511E-BSS
E-SERIES BATTERY SWITCHES350 Ampere continuous rating for inboard gasoline and diesel engines. Tin-plated copper studs for maximum conductivity and corrosion resistance Studs accept... Read more
Description
E-SERIES BATTERY SWITCHES
350 Ampere continuous rating for inboard gasoline and diesel engines.
Tin-plated copper studs for maximum conductivity and corrosion resistance
Studs accept 3/8" (M10) ring terminals
7/8" (22mm) stud length accepts multiple cable terminals
One-piece terminal stud design never loosens over time
Case design allows surface or rear panel mounting options
Label with international legends
Tactile indicator conveys knob position by feel
Specifications:
Terminal Stud Size: 3/8" 16 (M10)
Terminal Stud Torque: 140 in-lbs
Mounting Holes: Accept M6 screw
Cable Size to Meet Ratings: 4/0 AWG (95mm2)
Cable Clearance: 1.10" (28mm)
| Brand | Blue Sea Systems |
| Voltage Description | 32V DC Maximum |
| Amps Description | Continuous: 350A, Intermittent (5 minutes): 525A, Cranking (10 seconds): 1000A |
| Approvals | CE marked, ISO 8846, UL Listed UL 1107 electric power switches, Meets ABYC requirements, Meets UL1500 & SAE J1171 external ignition protection requirements |
