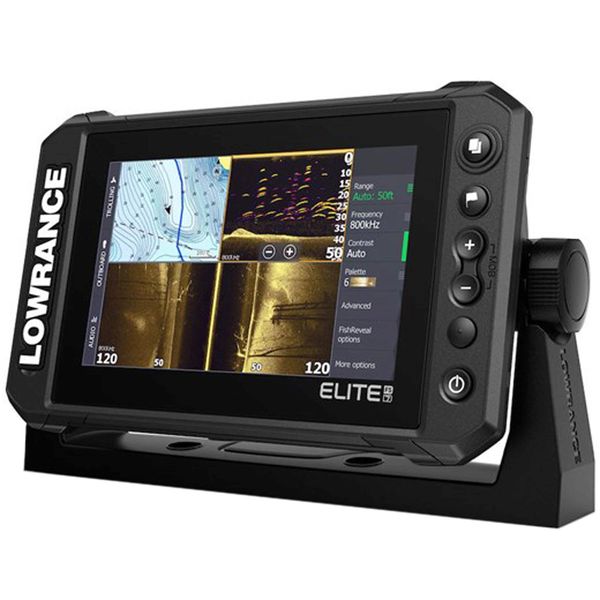

Lowrance Elite FS 7 Fishfinder with No Transducer (ROW)

Lowrance Elite FS 7 Fishfinder with No Transducer (ROW)

Name: Lowrance Elite FS 7 Fishfinder with No Transducer (ROW)
SKU: 000-15702-001

Product code: 000-15702-001
Manufacturer SKU: 000-15702-001

The Lowrance Elite Fishing System (FS) gives you access to their full line-up of fishfinding tools, including ActiveTarget live sonar, Active Imaging and compatibility with a wide range of chart options,... Read more

Description

The Elite Fishing System (FS 7) combines the power of Lowrance’s proven and newest fishfinding tools with a more affordable display that’s easier to use and install. Elite FS gives you all the tools you need to find and catch more fish: from ActiveTarget live sonar and extreme high-resolution Active Imaging with Lowrance CHIRP sonar, SideScan and DownScan Imaging to compatibility with a wide range of chart options.

Lowrance 000-15702-001 allows you to see structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with Active Imaging 3-in-1 sonar featuring CHIRP, SideScan and DownScan with FishReveal. Get the best of CHIRP sonar and DownScan Imaging on one screen with FishReveal, a Lowrance exclusive that helps you easily recognize fish from structure and cover on high-detailed DownScan images.

Fish smarter when you know exactly what fish are doing, in real time, with ActiveTarget Live Sonar. Enjoy high-resolution views of fish movements, tracking them as they swim in and around cover. Watch their real-time response to your lure and you will know if your current technique is working or if it’s time to switch things up.

Elite FS displays offer compatibility with a wide range of chart options, including C-MAP, Navionics (and more) as well as coming preloaded with a worldwide basemap.

Key Features

ActiveTarget Live Sonar ready

Active Imaging 3-in-1 ready

FishReveal

Worldwide basemap & wide range of chart options, including C-MAP, Navionics & more

C-MAP Easy Routing, Navionics Auto-routing capability

C-MAP Genesis Live onscreen mapping

High-resolution multi-touch touchscreen

Integrated wireless, NMEA 2000 & Ethernet connectivity

Full touchscreen control of Power Pole anchors & Ghost Trolling Motor

Specifications

Resolution	Display: 800 x 480
Selection Guide	No Transducer
Brand	Lowrance
Screen Size	7"
Series	Elite
Model	Elite FS 7
Voltage Description	12V DC (10.8V - 17V DC)
Cut Out	227.3mm x 123.7mm (8.95" x 4.87")
Amps Description	Consumption at 13.8V DC with Full Backlight: Typical: 2.0A, Maximum: 2.0A
Fuse	3A recommended
Contents	HDS/Elite/Hook/Mark Power Only Cable, 3x 3 amp Fuses, HDS-7 LIVE / Elite FS 7 Bracket, Elite FS 7 Sun Cover
Approvals	CE, Conforms to ACMA Radiocommunications Electromagnetic Compatibility 2017 & Short Range Devices 2014
Height Description	Dash mount: 147.4mm (5.80"), Gimbal mount: 162.4mm (6.39")
Width	Dash mount: 237.8mm (9.36"), Gimbal mount: 265.6mm (10.45")
Depth	Overall: 108.4mm (4.27"), Above Surface: 13.0mm (0.51"), Behind panel: 95.4mm (3.76")
Weight	0.90kg (1.90lbs)
Operating Temperature	-15°C to 55°C (5°F to 131°F)
Temperature Range	Storage: -20°C to 60°C (4°F to 140°F)
Warranty	1 Year + 4 additional years of upgrade options (totaling 5 years)
Mounting Description	Gimbal Bracket & Dash Flush Mount
