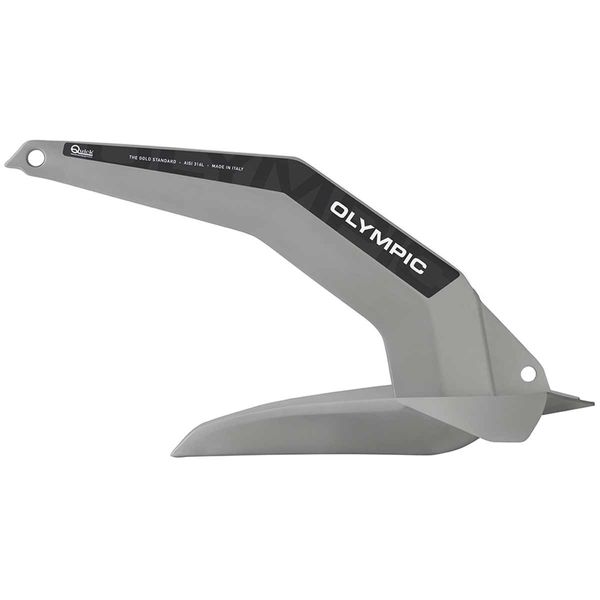

Quick Olympic Plow Anchor (20Kg / Satin Stainless Steel AISI316)

Quick Olympic Plow Anchor (20Kg / Satin Stainless Steel AISI316)

Name: Quick Olympic Plow Anchor (20Kg / Satin Stainless Steel AISI316)
SKU: Q-ANCOLY20SB

Product code: Q-ANCOLY20SB
Manufacturer SKU: FYANLY020XS0A00

Quick Olympic anchor 20kg in sand-blasted stainless steel with a plough-shaped arm.Anchor Specs:• Weight: 20kg (44 lb)• Recommended chain size: 8mm (5/16")• Boat length*:... Read more

Description

Quick Olympic anchor 20kg in sand-blasted stainless steel with a plough-shaped arm.

Anchor Specs:

• Weight: 20kg (44 lb)

• Recommended chain size: 8mm (5/16")

• Boat length*: 12.6 meters (41 ft)

• Boat weight*: 10.2 tons (11.2 US tons)

• Material: AISI 316 Stainless steel with a satin finish

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

Dimensions (see image for reference):

A: 409mm (16-7/64")

B: 696.5mm (27-27/64")

C: 17mm (43/64")

D: 20mm (25/32")

E: 566.5mm (22-5/16")

F: 487.2mm (19-3/16")

G: 287mm (11-19/64")

H: 240mm (9-29/64")

I: 320mm (12-19/32")

The Quick Olympic swivel is available as an optional extra, see part number: Q-OS20SB.

Key Features

Detailed engineering & production process

Sheet metal forming, subsequently soldered

Sand Blasted AISI 316 Stainless steel

Specifications

Material	Satin (Sand Blasted) Stainless Steel AISI 316
Primary Construction	Stainless Steel 316
Boat Size	Up to 12.6 meters in length
Brand	Quick
Weight	20kg
Country of Origin	Italy
