Maestrini DZR Brass Bracket Mounted Water Strainer (1" BSP Female)

Name: Maestrini DZR Brass Bracket Mounted Water Strainer (1" BSP Female)
SKU: 401325

Product code: 401325
Manufacturer SKU: 7006F

Description

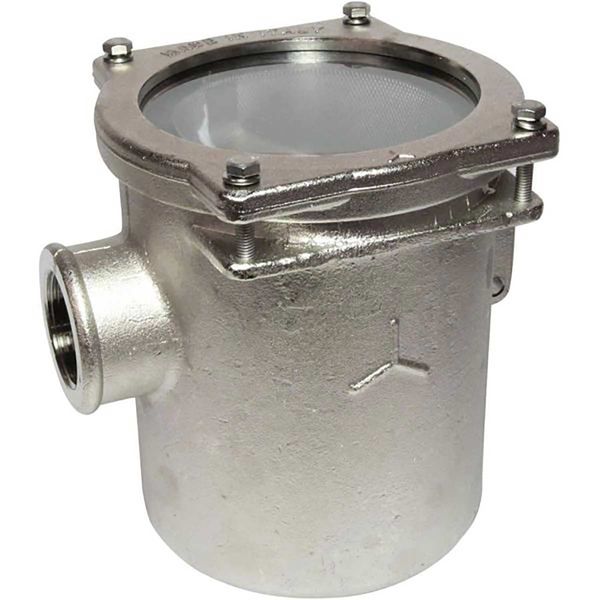

The Maestrini high capacity remote mount water strainer is constructed from dezincification resistant brass (DZR) with a polycarbonate transparent lid with O-ring seal. The polycarbonate filter basket is easy to clean and can be accessed simply by removing the four screws on the top of the water strainer.

The Maestrini remote water strainer is designed to be bracket mounted through the side using the integral mounting lugs. The 1" BSP female inlet is located on the base of the strainer and the 1" BSP female outlet is on the side of the body.

Thumb screws can be purchased separately: 401293.

Specifications

Flow Rate Description	8,080 LPH at 0.1 Bar, 25,550 LPH at 1 Bar
Material	CR (DZR) Brass with Polycarbonate Filter Basket & Top
Primary Construction	DZR / CR Brass
Strainer Design	Remote Bracket Mount
Thread Connection	BSP
Thread Fitting Size	1"
Thread Gender	Female
Thread Size	1" BSP Female
Brand	Maestrini
Series	Venezia
Approvals	Fire Tested in Accordance to ISO 7840, Annex A. Complies to Seafish Standards.
Height Description	128mm (5")
Width	150mm
Country of Origin	Italy
Mounting Description	Bracket Mount
