Quick Olympic Plow Anchor (16Kg / Satin Stainless Steel AISI316)

Quick Olympic Plow Anchor (16Kg / Satin Stainless Steel AISI316)

Name: Quick Olympic Plow Anchor (16Kg / Satin Stainless Steel AISI316)
SKU: Q-ANCOLY16SB

Product code: Q-ANCOLY16SB
Manufacturer SKU: FYANLY016XS0A00

Quick Olympic anchor 16kg in sand-blasted stainless steel with a plough-shaped arm.Anchor Specs:• Weight: 16kg (35 lb)• Recommended chain size: 8mm (5/16")• Boat length*:... Read more

Description

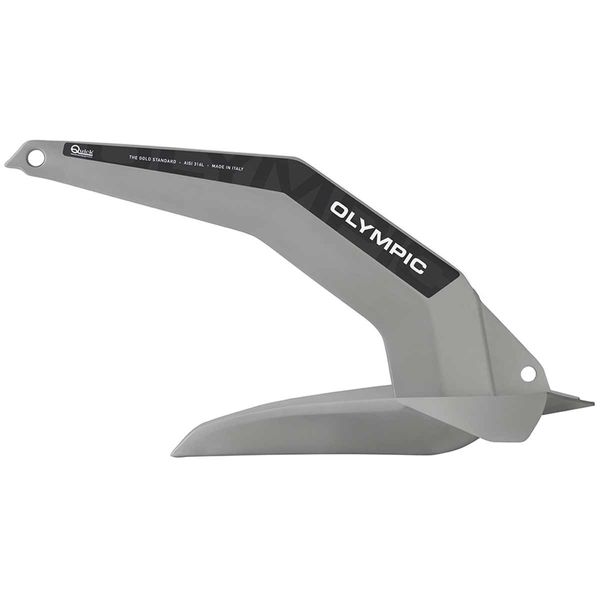

Quick Olympic anchor 16kg in sand-blasted stainless steel with a plough-shaped arm.

Anchor Specs:

• Weight: 16kg (35 lb)

• Recommended chain size: 8mm (5/16")

• Boat length*: 10.8 meters (35 ft)

• Boat weight*: 6.3 tons (7 US tons)

• Material: AISI 316 Stainless steel with a satin finish

*NOTE: The indication may vary according to the boat type and the anchor-rode type.

Dimensions (see image for reference):

A: 377mm (14-27/32")

B: 659mm (25-15/64")

C: 16mm (5/8")

D: 18.5mm (47/64")

E: 526.7mm (20-47/64")

F: 459.3mm (18-5/64")

G: 261.8mm (10-5/16")

H: 217.7mm (8-9/16")

I: 297mm (11-11/16")

The Quick Olympic swivel is available as an optional extra, see part number: Q-OS20SB.

Key Features

Detailed engineering & production process

Sheet metal forming, subsequently soldered

Sand Blasted AISI 316 Stainless steel

Specifications

Material	Satin (Sand Blasted) Stainless Steel AISI 316
Primary Construction	Stainless Steel 316
Boat Size	Up to 10.8 meters in length
Brand	Quick
Weight	16kg
Country of Origin	Italy
